In today’s digital world, businesses handle an overwhelming amount of documentation daily. Imagine being able to automatically ingest files from Google Drive, index them into a vector store, and enable AI-powered chat over your documents—all without writing code. Thanks to n8n, an open-source workflow automation tool, you can.

In this guide, you’ll learn how to build a powerful n8n workflow that:

• Monitors Google Drive for new or updated files.
• Loads and indexes those documents into a vector database.
• Integrates with a chatbot to query document content using natural language.

Let’s build it step-by-step. 🔧

📦 What You’ll Need

Before diving in, make sure you have:

• An active n8n instance (self-hosted or cloud).
• Google Drive credentials connected in n8n.
• Access to a vector database (e.g., Pinecone, Weaviate, Postgres, or ChromaDB).
• An OpenAI or similar LLM API key (for document-based chat).
• The latest version of the Document Loader and AI Agent nodes in n8n (2024+ version).

🔧 Step-by-Step Workflow Setup in n8n

🔁 1. Monitor Google Drive for Files

Use Google Drive Trigger or a Polling Loop to watch for newly uploaded or modified files:

• Node: Google Drive
• Action: List Files or Watch Files
• Filter: Specific folder or mime type (PDFs, DOCX, etc.)

⬇️ 2. Download the File

• Node: Google Drive
• Action: Download File
• Use the file ID from the previous node.

📄 3. Extract Content with Document Loader

The Document Loader node can ingest multiple file types:

• PDF, DOCX, Markdown, etc.
• Handles splitting content into chunks for vector indexing.
• Optionally enables metadata tagging.

📌 Pro Tip: Use recursive loading if working with folder structures.

🔍 4. Store Vectors in a Vector Database

🧠 4.1 Configuring Pinecone for Google Gemini

To ensure compatibility with Google Gemini’s 768-dimensional embeddings, follow these steps to create your Pinecone index:

1. Access Pinecone Console:

– Log in to your [Pinecone account](https://www.pinecone.io/) and navigate to “Indexes” → “Create Index.”

2. Set Index Parameters:

– Name: Choose a unique identifier (e.g., `gemini-docs`).
– Dimension: Set to 768 (required for Gemini embeddings).
– Distance Metric: Use `cosine` for text similarity tasks.

3. Configure Advanced Settings:

– Select a pod type (e.g., `s1.x1` for starter-tier scalability).
– Choose the environment region matching your project’s geographic needs.

4. Connect to n8n:

– Copy your Pinecone API key and environment name from the console.
– Input these credentials into n8n’s Pinecone node alongside your index name.

💡 Pro Tip:

– Verify the index dimension before uploading data—mismatched dimensions will cause embedding failures.
– Use the same Pinecone project environment for all related workflows to simplify access management.

Send the processed content to a vector store:

• Node: Pinecone, Weaviate, or Chroma
• Input: Output from the Document Loader
• Each chunk will be embedded using your preferred large language model (LLM) embedding model (e.g., OpenAI, Cohere, Google Gemini).

🧠 5. Create an AI Agent for Chat

Create a chat agent using n8n’s new Agent node:

• Configure it to access your vector database.
• Provide it access to a model like Google Gemini, OpenAI GPT-4 or similar.
• Add memory to preserve conversation context.

💬 6. Expose Your Documents Chat to a Frontend

Use the Chat Trigger, Webhook Trigger or a Telegram/Slack Bot to receive user prompts:

• Pass input to the Agent node.
• Return the response to the frontend/bot.

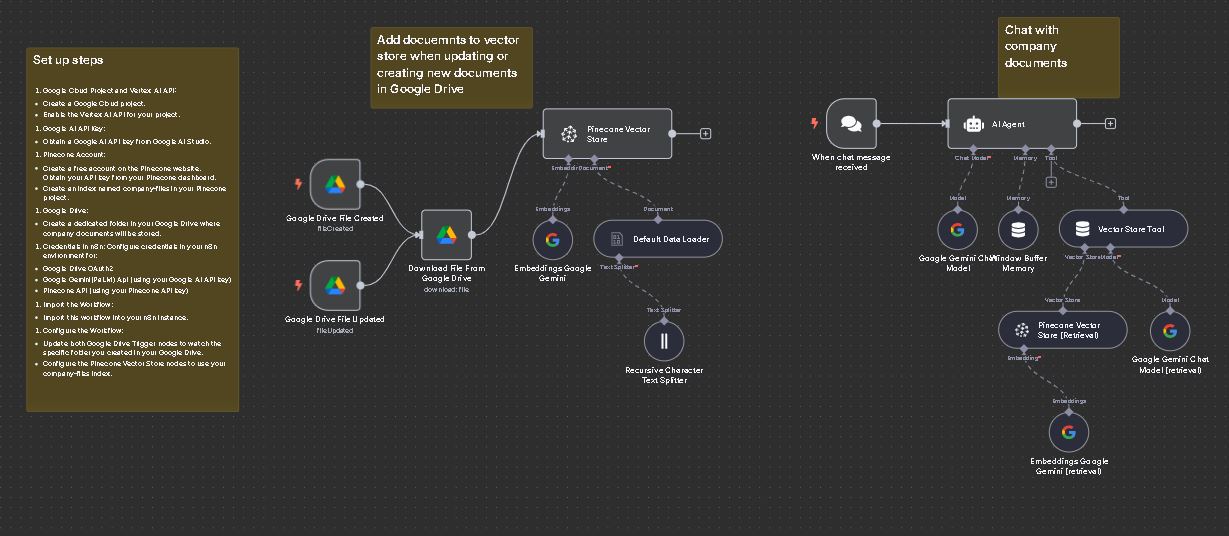

🖼 Workflow Architecture Overview

From the screenshot, here’s how the complete flow works visually:

📁 Google Drive (Trigger & Download) → 📄 Document Loader → 🧠 Vector Store → 🗣 AI Agent → 📡 User Interface (Bot/Webhook) → 🔁 Respond with LLM

This modular design allows scaling and easy debugging.

🛠 Setup Tips

Here are some handy setup tips (from the screenshot):

• Use batch processing in Document Loader for large files.
• Enable chunk size control for better embedding granularity.
• Use n8n’s Wait node to manage rate limits or staggered loading.
• Store file metadata (name, source) in vector records for searchable context.
• Use the Execute Command node for any custom Python script if needed.
• Log errors with IF + Function nodes for better debugging.

💡 Use Case Ideas

Here’s how teams are already using this setup:

• Legal teams: Chat with contract documents stored in Drive.
• HR teams: Auto-respond to employee handbook questions.
• Customer support: Ingest product docs and enable instant agent help.
• Sales: Train AI with pitch decks and brochures.

🔐 Security & Access Tips

• Restrict Drive access to read-only folders.
• Enable audit logs for chat inputs/responses.
• Secure LLM API keys with n8n credentials manager.
• Use vector store namespaces per user or team for multi-tenant separation.

📦 Download the Workflow

Need a ready-to-import JSON version of this flow? [Click here to request it] or use the visual editor to replicate the steps above.

🧠 Final Thoughts

Combining n8n, Google Drive, AI models, and vector databases creates a powerful automation framework. Whether you’re automating documentation search or building a smart assistant, this workflow puts the power of AI directly into your operations.

👉 Ready to build your own? Head over to n8n.io and start automating today.

References:

n8n Template:

https://n8n.io/workflows/2753-rag-chatbot-for-company-documents-using-google-drive-and-gemini
